Cart Body Dimensions
24 in. wide x 72 in. long x 36 in. high
Dimensions on Trailer
39 in wide x 96 in. long x 54 in. high
D.O.T. Compliance
Highway rated trailer with 1/2 ton suspension.
NSF Available at extra cost
Electrical Brake and signal lights plus trailer wiring harness installed.
Cart Body 18 Gauge Stainless Steel or diamond plate aluminum
Under Carriage
4.80 x 9 Highway Tires plus 1 1000 lb braking Caster Wheel
Cart Weight 450 lbs. approx. empty
Security stainless lock-able suitcase latches

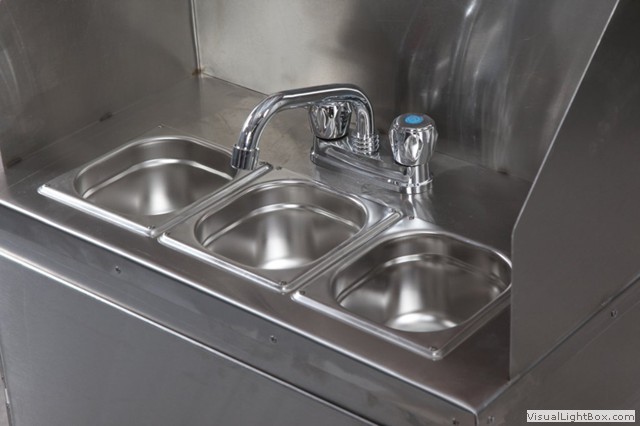

Sinks 3 sinks standard, extra can be added
Fresh Water Tank 5 gallons.
Waste Water Tank 7 gallons.
Cooler Storage Insulated top entry ice box for up to 65 sodas plus meat.

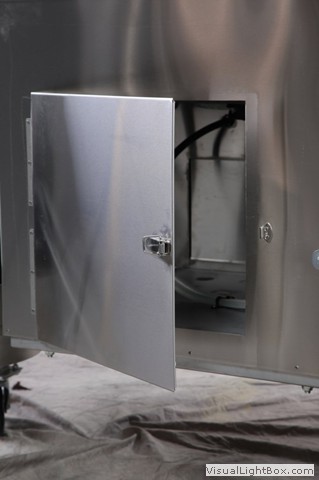

Dry Storage Top side display area plus three additional under counter dry storage.
PropaneTank 2 x 20 lb Tank Baskets.
Gas Regulator Two stage regulator. UL rated
Burner 1 x 17,000 B.T.U burner with adjustable controls
Umbrella 6-1/2 foot high wind umbrella
Steamers 3 steamer pans 1/4 size
Food Equipment Summary BBQ, stainless steel 17,000 BTU.
Additional Standard Features Hot and Cold Running Water.
Additional Equipment Options Additional Sinks up to 4, Griddle, Char Broiler, See the Accessories pages for a complete list of optional equipment.

Cart Photos

Cart Schematics

Schematics A100-FRONT

Schematics A100-LEFT

Schematics A100-ORTHO

Schematics A100-REAR

Schematics A100-RIGHT

Schematics A100-TOP
